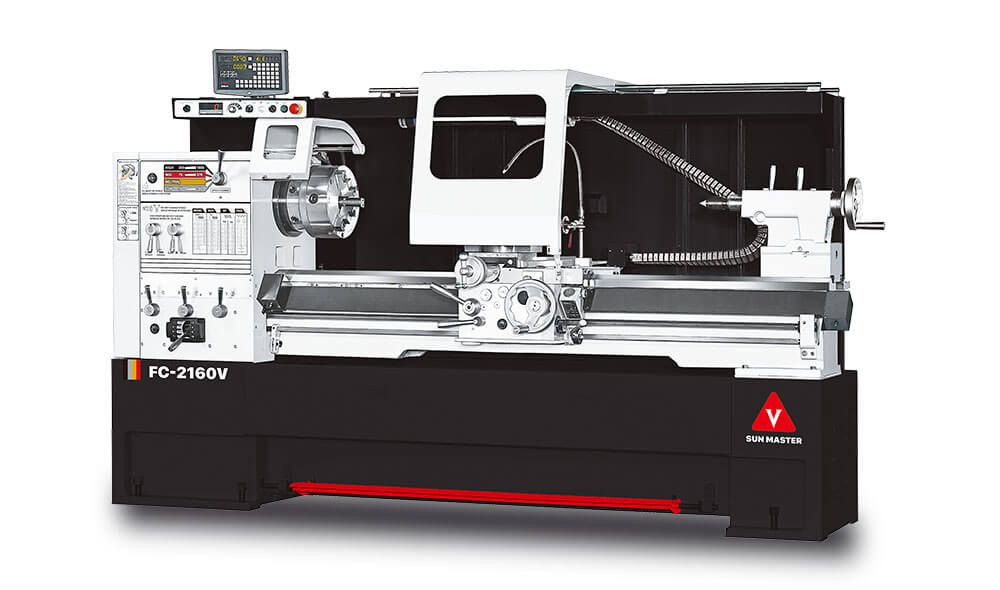

FC-V Series Variable Speed Lathe
MODEL | FC-1640V | FC-1660V | FC-1840V | FC-1860V | FC-1880V | FC-2140V | FC-2160V | FC-2180V | ||
---|---|---|---|---|---|---|---|---|---|---|
Capacity | Height of centers | 205 mm (8.07") | 231 mm (9.05") | 271 mm (10.67") | ||||||
Swing over bed | 410 mm (16.14") | 462 mm (18.11") | 542 mm (21.34") | |||||||
Swing in gap | 583 mm (22.95") | 650 mm (25.59") | 730 mm (28.74") | |||||||
Swing over cross slide | 262 mm (10.3") | 305 mm (12") | 387 mm (15.23") | |||||||
Distance between centers | 1000 mm (40") | 1500 mm (60") | 1000 mm (40") | 1500 mm (60") | 2200 mm (86.6") | 1000 mm (40") | 1500 mm (60") | 2200 mm (86.6") | ||
Width of bed | 320mm (12.5") | |||||||||
Headstock and Main Spindle | Spindle nose, internal taper | D1-8 / A1-8 (opt.), o85mm Taper 1/19.18 | ||||||||
Spindle center sleeve | Ø85mm Taper 1/19.18 x MT. No.5 | |||||||||
Spindle bore | Ø80mm (3.149") | |||||||||
Spindle speed: Gear steps / Range |
3 steps / | |||||||||
L | 25~100 rpm | |||||||||
M | 75~370 rpm | |||||||||
H | 360~1800 rpm | |||||||||
Carriage | Cross slide travel | 250 mm (9.84") | 300 mm (11.81") | |||||||
Top slide travel | 150 mm (5.9") | |||||||||
Threads and Feeds | Whitworth threads: Kinds / Range | 45 kinds / 2~72 T.P.I.. | ||||||||
Metric threads: Kinds / Range | 39 kinds / 0.2~14 mm | |||||||||
D.P. threads: Kinds / Range | 21 kinds / 8~44 D.P. | |||||||||
M.P. threads: Kinds / Range | 18 kinds / 0.3~3.5 M.P. | |||||||||
Longitudinal feeds | 0.04~1.0 (0.0015"~0.04") | |||||||||
Cross feeds | 0.02~0.5 (0.00075"~0.02") | |||||||||
Tailstock | Quill diameter | Ø59 mm (2.322") | Ø68 mm (2.677") | Ø59 mm (2.322") | Ø68 mm (2.677") | |||||
Quill travel | 127 mm (5") | 153 mm (6") | 127 mm (5") | 153 mm (6") | ||||||
Taper of center | MT. No.4 | |||||||||
Motor | Main spindle | std. AC 7.5 kW (10 HP) opt. AC 9.375 kW (12.5 HP), Inverter (15 HP / 11.25 kW) | ||||||||
Forced lubrication for headstock | 1/4 HP | |||||||||
Coolant pump | 1/8 HP | |||||||||
Measurement | Weight Approx | NET | 1750kgs | 1900kgs | 1800kgs | 1950kgs | 2350kgs | 1850kgs | 2000kgs | 2400kgs |
Packing size | GROSS | 1950kgs | 2150kgs | 2000kgs | 2200kgs | 2650kgs | 2050kgs | 2250kgs | 2700kgs | |
Length | 2400mm | 2900mm | 2400mm | 2900mm | 3700mm | 2400mm | 2900mm | 3700mm | ||
Width x Height | width 1155 mm (45.5") X height 1900 mm (74.8") |
Standard Accessories:
- Backplate for 10" chuck
- Dead center MT.5
- Dead center MT.4 with carbide tip
- Spindle center sleeve.Ø85mm Taper 1/19.18
- Level pads......6 pcs
- Tool set & Box
- Operation manual & parts list
- Full length splash guard
- Halogen lamp
Optional Accessories:
3-Jaws scroll 10" chuck
4-Jaws independent 12" chuck
Faceplate 14"
Chuck Safety Guards
Electrical system for CE
Digital read out system
Carriage micro stop set
Drill chuck & arbor
Rotating center MT.4
Taper turning attachment
Steady rest w/ball bearing
Follow rest w/bronze tip
Quick change tool post
Protect cover on leadscrew for CE
- All castings are properly stabilized and stress relieved.
- Bed ways are hardened & ground to min. HRC48-55.
- Turcite B coating between the bed and carriage.
- Extremely low noise level.
- Foot brake pedal provided.
- Built-in coolant pump & fitting provided.
- Wider bed way which give absorbs vibration.
- Y-Δ type spindle motor equipped to make sure smooth start and operatrion.
Headstock
- Housing is vibration-absorbent, deflection-free.
- Gears are hardened & MAAG or REISHAUER ground.
Gear Box
- Universal type allowing a wide range of inch, metric, M.P., D.P. threads without change gears.
Apron
- R/H or L/H wheel can be available on request.
- Integrated automatic control for longitudinal & cross feeds, forward &reverse feeds.
Carriage & Slide
- Anti-Float design backlash eliminator fitted in cross slide nut.
- Safety clutch at feed shaft.
- Oneshot lubrication in carriage & top slide.
- Dual dials supply inchsystem screw.
- Metric dial supply metric system only.
Safety Features
- Nylon safety gears in end train.
- Shear pin in leadscrew.
Heavy Duty Spindle
- Machined from forged alloy steel, hardened ground & dynamically balanced.
- Three point support by high grade precision, machine tool taper roller & ball bearings.
