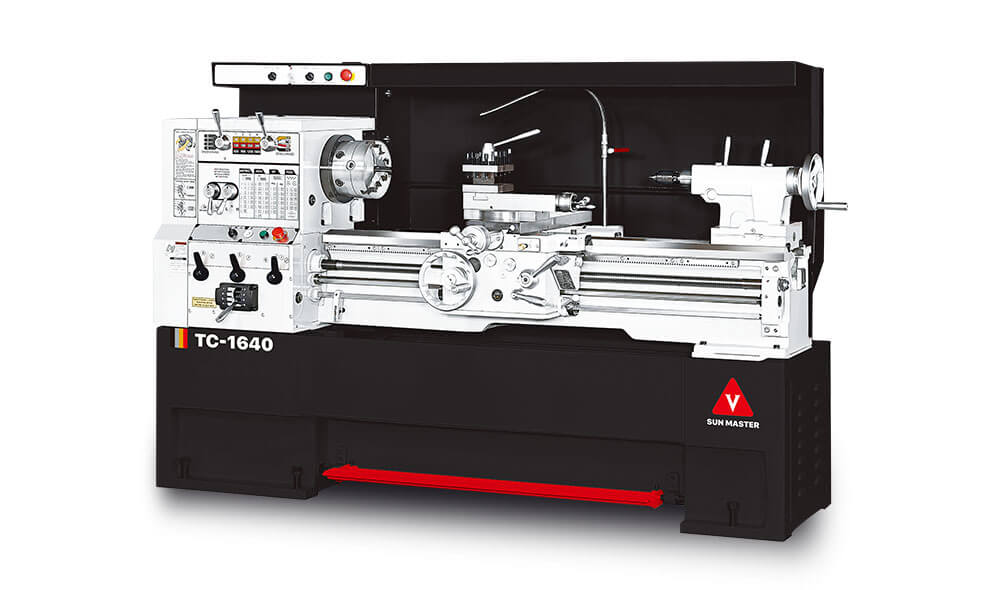

TC-V Series Variable Speed Lathe
| MODEL | TC-1640V | TC-1660V | TC-1840V | TC-1860V | ||
|---|---|---|---|---|---|---|
| Capacity | Height of centers | 205 mm (8.07") | 231 mm (9.09") | |||
| Swing over bed | Ø410 mm (16.14") | Ø462 mm (18.18") | ||||
| Swing in gap | Ø620 mm (24.4") | Ø652 mm (25.66") | ||||
| Swing over cross slide | Ø255 mm (10.04") | Ø305 mm (12") | ||||
| Distance between centers | 1000 mm (40") | 1500 mm (60") | 1000 mm (40") | 1500 mm (60") | ||
| Width of bed | 305 mm (12") | |||||
| Gap width in front faceplate | 120 mm (4.72") | |||||
| Headstock and Main Spindle | Spindle nose | D1-6 (std) / A2-6 (opt) | ||||
| Spindle center sleeve | Ø70 mm (2.76") Taper 1/19.18 MT x NO.4 | |||||
| Spindle bore | Ø65 mm (2.55") | |||||
| Spindle speed | 3 steps / 30 ~ 2300 RPM | |||||
| Carriage | Cross slide travel | 250 mm (9.84") | 260 mm (10.23") | 250 mm (9.84") | 260 mm (10.23") | |
| Top slide travel | 155 mm (6.1") | |||||
| Threads and Feeds | Whitworth threads: Kinds / Range | 45 Kinds / 2 ~ 72 T.P.I. | ||||
| Metric threads: Kinds / Range | 39 Kinds / 0.2 ~ 14 mm | |||||
| D.P. threads: Kinds / Range | 21 Kinds / 8 ~ 44 D.P. | |||||
| M.P. threads: Kinds / Range | 18 Kinds / 0.3 ~ 3.5 M.P. | |||||
| Longitudinal feeds | 0.04 ~ 1.0 mm (0.0015" ~ 0.04") | |||||
| Cross feeds | 0.02 ~ 0.5 mm (0.00075"~ 0.02") | |||||
| Tailstock | Quill diameter | Ø59 mm (2.322") | ||||
| Quill travel | 127 mm (5") | |||||
| Taper of center | MT No. 4 | |||||
| Motor | Main spindle | 5 HP (3.75 kW) | ||||
| Forced lubrication for headstock | 1/4 HP (0.1875 kW) | |||||
| Coolant pump | 1/8 HP (0.09375 kW) | |||||
| Measurement | Weight Approx | NET | 1600 kgs | 1750 kgs | 1650 kgs | 1800 kgs |
| GROSS | 1800 kgs | 2000 kgs | 1850 kgs | 2050 kgs | ||
| Packing size | Length | 2400 mm | 2900 mm | 2400 mm | 2900 mm | |
| Width x Height | Width 1120 (44.1") x Height 1900 mm (74.8") | |||||
Specifications subject to change without notice.
Standard Accessories：
- Backplate for 9" chuck
- Dead center MT.4
- Dead center MT.4 with carbide tip
- Spindle center sleeve MT.6
- Level pads......6 pcs
- Tool set & Box
- Operation manual & parts list
- Full length splash guard
- Halogen lamp
Optional Accessories：
3-Jaws scroll 9" chuck
4-Jaws independent 10" chuck
Driving plate with dog
Chuck Safety Guards
Electrical system for CE
Faceplate 12"
Digital read out system
Carriage micro stop set
Drill chuck & arbor
Rotating center MT.4
Taper turning attachment
Steady rest w/ball bearing
Follow rest w/bronze tip
Quick change tool post
Protect cover on leadscrew for CE
- All castings are properly stabilized and stress relieved.
- Bed ways are hardened & ground to min. HRC 48 - 55.
- Turcite B coating between the bed and carriage.
- Extremely low noise level.
- Foot brake pedal provided.
- Built-in coolant pump & fitting provided.
- Wider bed way which give absorbs vibration.
